FADOSCNC ROBOTIC CIRCUIT BOARDS TESTER FEATURES

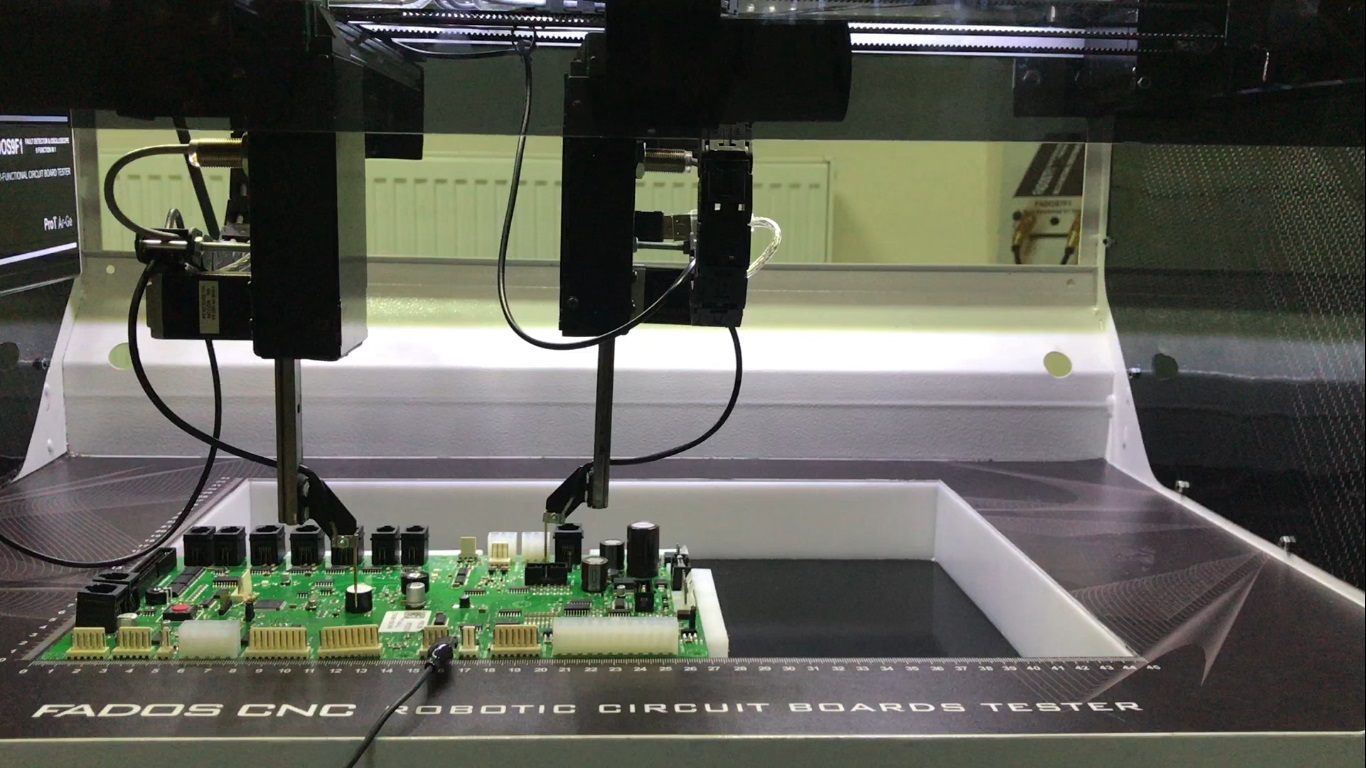

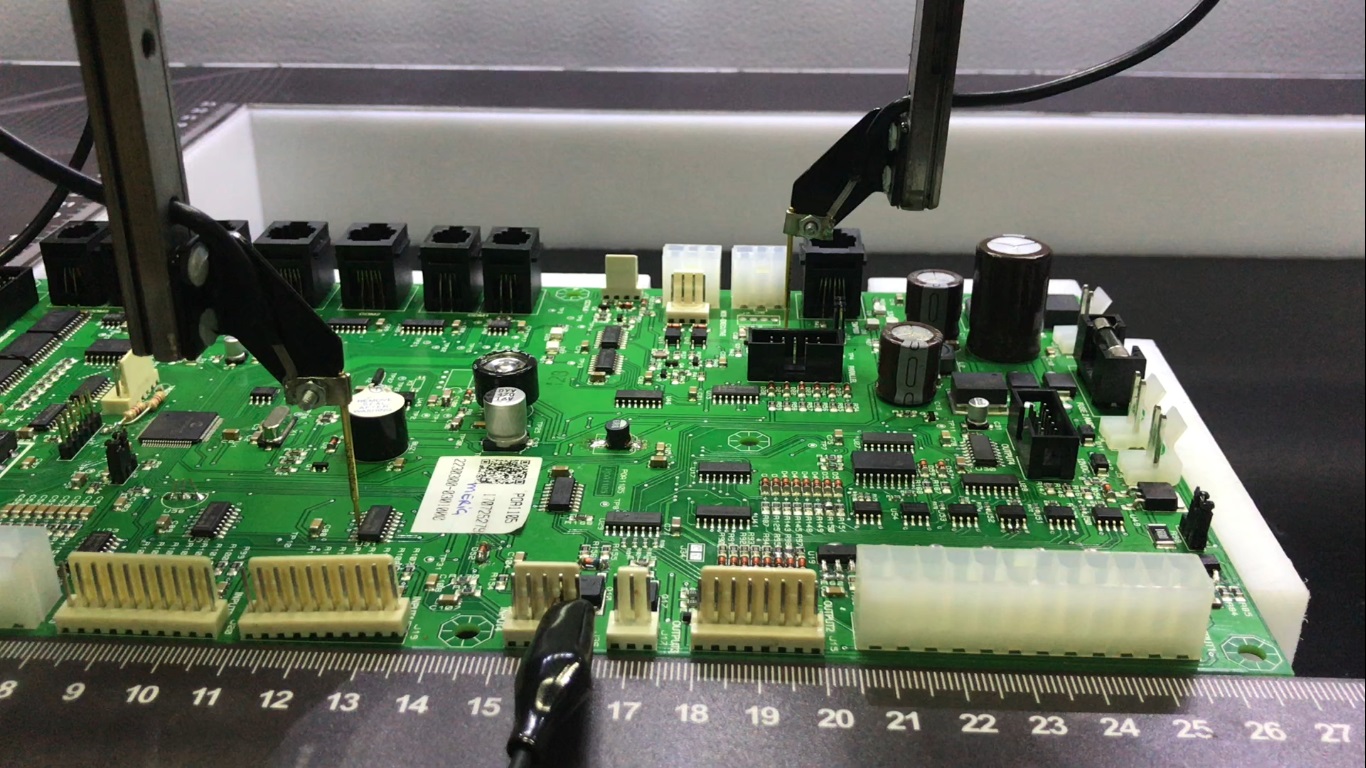

Double Flying Probe VI Tester
Fault detection by direct comparison of the current-voltage characteristics (signatures) of circuit board without applying power to the unit under test. It will detect from components of failures.
Create DC VI Graph of Circuit Board’s Power Supply
Programmable DC Power Supply (24V-1.5A); the output voltage is adjustable. 0 to 24 volts with an output current 20 to 1500 mA; to gives energy to circuit board and creates Power DC Voltage-Current Graph.
Draw Heat Map of the Circuit Board
To detect more heated components by using Non-Touched IR Temperature Sensor and draw a heat map of the circuit board.
Display temperature value of components
Compare temperature of the components from memory.
Equivalent Circuit Diagram
Display of an equivalent circuit that between corresponds to the characteristic on the touched point – GND.
Display Values of Resistor, Capacitor, Inductor and Diode Threshold
Display the calculated values of resistance, capacitors, inductors and diode threshold voltages between corresponding to the conditions at the contacted node – GND.
Memory Function
Signatures of a functioning board can be saved and used at a later time as a reference for troubleshooting a faulty board.
